D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
628-7W2-624-7TA | 14.4986 |  |
5373 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-7W2-624-7TA | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 7 (5 + 2 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | |
 |

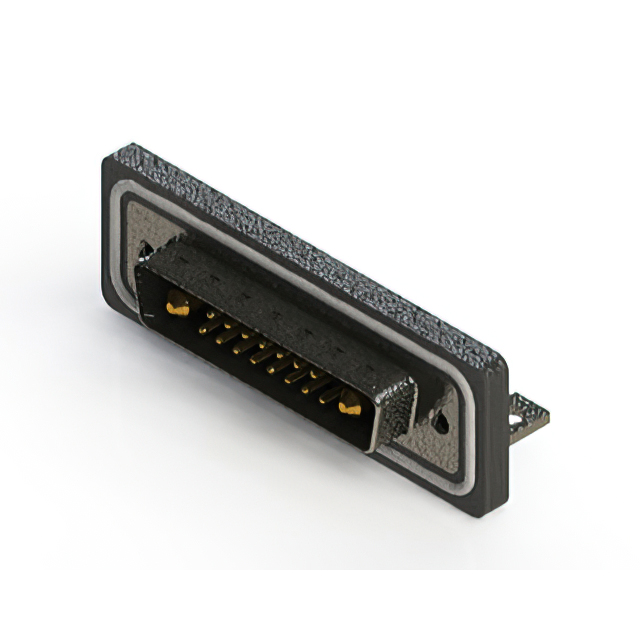

629W17W2240-1N4 | 16.3585 | |
2443 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629W17W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W17W2240-1N4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
628-13W3624-7TE | 21.7039 | |
6007 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W3624-7TE | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | |
 |
627-24W7622-1T2 | 37.1420 | |
5137 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-24W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-24W7622-1T2 | EAR99 | 8536.69.4040 | 600 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - | |
 |
628-037-621-259 | 6.8216 | |
7508 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-621-259 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
627-M15-320-LT6 | 9.1140 | |
6170 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M15-320-LT6 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||
 |
630-M09-340-WN3 | 6.0690 | |
8547 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-M09 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M09-340-WN3 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | 0.370" (9.40mm) | ||
 |
B57-114-667I402 | - | |
4837 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-114-667I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-M25-321-BN3 | 12.0598 | |
1911 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M25-321-BN3 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
630-3W3-250-2T4 | 5.2792 | |
2466 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3W3-250-2T4 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | Flash | 20A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.520" (13.20mm) | |
|
627-47W1222-3N1 | 14.0490 | |
2229 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-47W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-47W1222-3N1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | - | |
|
627-24W7224-4TC | 13.1654 | |
6108 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-24W7224-4TC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | - | |
 |
663-009-364-000 | 6.0832 | |
2497 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Shielded | 663-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-009-364-000 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 9, 9 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||
 |
625-009-262-015 | 2.2492 | |
5854 | 0.00000000 | EDAC Inc. | 625 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 625-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-625-009-262-015 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.584" (14.84mm) | ||
 |
630-13W3640-5T1 | 14.6662 | |
8874 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W3640-5T1 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | |
 |
627-M25-320-BN2 | 11.9296 | |
3721 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-320-BN2 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
637-M26-230-BT2 | 4.4940 | |
2783 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 637-M26 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M26-230-BT2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | - | ||
 |

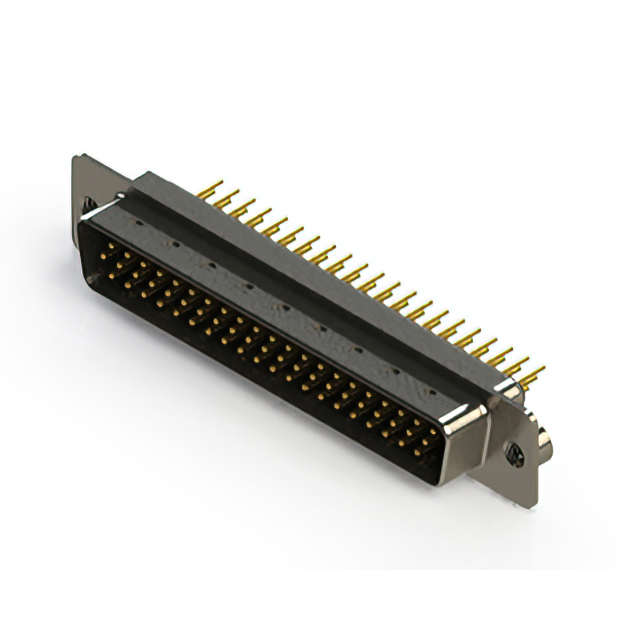

637-M62-630-BN2 | 16.8420 | |
2364 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 637-M62 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M62-630-BN2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | - | ||
|
627-43W2222-4T2 | 14.4380 | |
9431 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-43W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-43W2222-4T2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
|
627-009-221-553 | - | |
2283 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Obsolete | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-009 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-009-221-553 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 1 (DE, E) | - | |
 |
627-13W6624-7NC | 31.9847 | |
8014 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W6624-7NC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (7 + 6 Coax) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
|
627-015-221-552 | - | |
9619 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Obsolete | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-221-552 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 2 (DA, A) | - | |
 |
628-27W2224-2NA | 9.7996 | |
2629 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-27W2224-2NA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 27 (25 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | - | |
 |
B57-036-560I402 | - | |
9395 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-560I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
627-M09-220-GN6 | 3.9690 | |
9477 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M09 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-220-GN6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
B57-150-666I302 | - | |
7293 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-666I302 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-27W2240-5NB | 11.5443 | |
5506 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-27W2240-5NB | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 27 (25 + 2 Coax) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | 0.370" (9.40mm) | |
 |

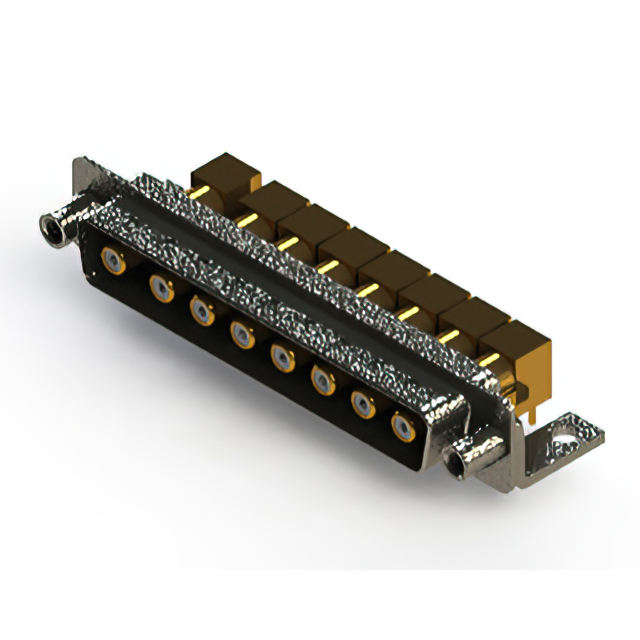

629-8W8-240-7T6 | 13.7734 | |
2050 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-240-7T6 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax | 8 (Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.370" (9.40mm) | |
 |
630-3W3-650-4ND | 14.0976 | |
2660 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3W3-650-4ND | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.520" (13.20mm) | |
 |

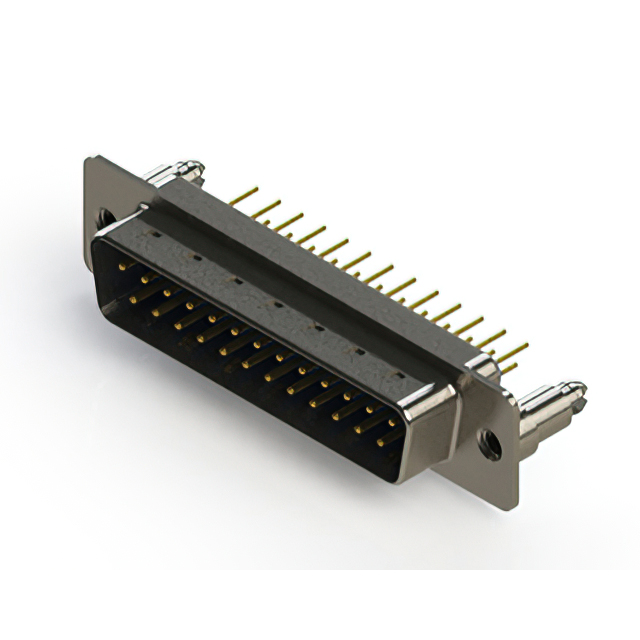

627-M25-220-LT5 | 5.0872 | |
9590 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-M25 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-220-LT5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - |
