D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-17W5650-3N6 | 29.8187 |  |
2551 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W5650-3N6 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |

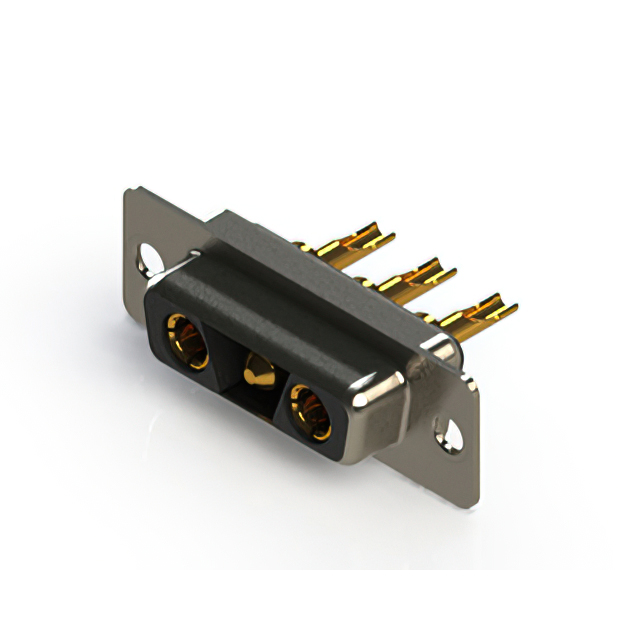

628-3WK3622-1T1 | 12.1590 | |
1391 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-3WK | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-3WK3622-1T1 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Signal and Power | 3 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | - | |
 |

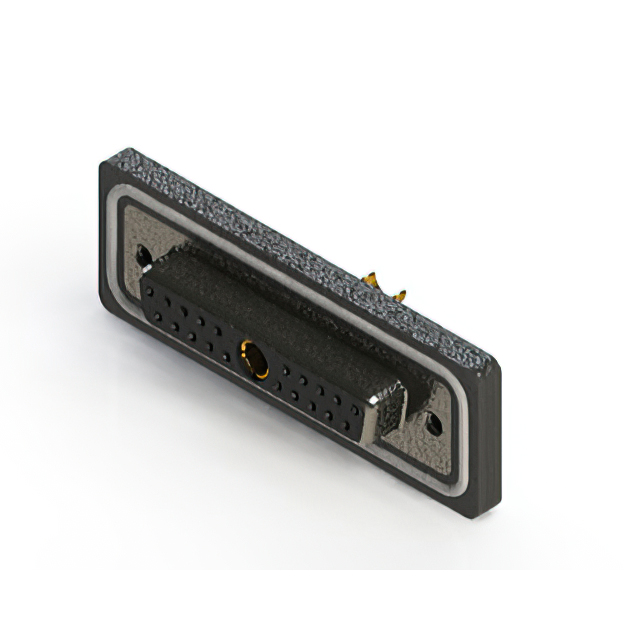

628W21W1622-4N2 | 25.0731 | |
5964 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Shielded | 628W21W | Black | Solder Cup | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W21W1622-4N2 | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
B57-024-260I703 | - | |
7483 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-260I703 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-015-620-261 | 2.4018 | |
7548 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-620-261 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
628-3W3-224-7NA | 8.6885 | |
7631 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-3W3-224-7NA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 3 (Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |
 |
B57-014-266I402 | - | |
1047 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-266I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-8W8-650-2NB | 29.7080 | |
1978 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-650-2NB | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.520" (13.20mm) | |
 |
661-025-664-043 | 12.7714 | |
7385 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 661-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-025-664-043 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25, 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
662-009-664-052 | 6.9695 | |
4560 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 662-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-009-664-052 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | - | UL94 V-0 | Signal | 9, 9 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 1 (DE, E); 1 (DE, E) | 0.318" (8.08mm) | ||
 |
627-M25-222-LN2 | 6.1246 | |
1814 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M25 | Blue | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-222-LN2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
628-M09-321-LT5 | 7.3111 | |
3194 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M09 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M09-321-LT5 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
628-009-620-033 | 2.5080 | |
4272 | 0.00000000 | EDAC Inc. | 628 | Bulk | Active | -55°C ~ 85°C | Panel Mount, Through Hole | Shielded | 628-009 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A | Phosphor Bronze | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | - | ||
 |
628-3W3-624-3TC | 12.2412 | |
8095 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-3W3-624-3TC | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Signal and Power | 3 (Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |
 |
629-2WK2650-1N3 | 11.1933 | |
7498 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2WK2650-1N3 | EAR99 | 8536.69.4040 | 250 | Plug, Female Sockets and Male Pins | 2 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
|
627-36W4224-3T1 | 12.0442 | |
7977 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4224-3T1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - | |
 |

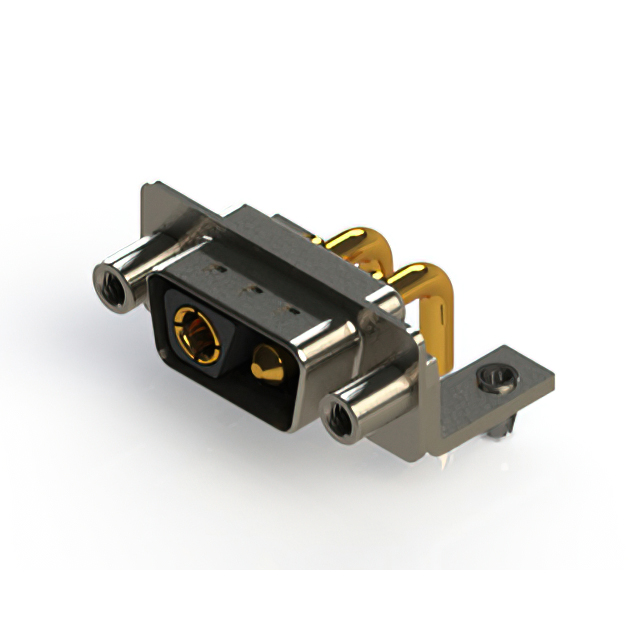

629-2WK2640-2T5 | 8.6527 | |
1142 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2WK2640-2T5 | EAR99 | 8536.69.4040 | 2,000 | Plug, Female Sockets and Male Pins | 2 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
628-43W2624-3N3 | 37.5536 | |
7414 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-43W2624-3N3 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
 |
629-M09-240-LT3 | 4.1160 | |
5116 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-M09 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M09-240-LT3 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 1 (DE, E) | 0.370" (9.40mm) | ||
 |
629-47W1250-3NC | 15.1136 | |
5974 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-47W1250-3NC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | |
|
627-43W2624-5TD | 39.6707 | |
7139 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-43W2624-5TD | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 43 (41 + 2 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
 |
621-037-660-011 | 6.9660 | |
6352 | 0.00000000 | EDAC Inc. | 621 | - | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 621-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.318" (8.08mm) | ||
|
627-21W4224-2T4 | 10.8885 | |
3552 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-21W4224-2T4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | - | |
|
627-17W5224-4TE | 11.8702 | |
2736 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-17W5224-4TE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |
629W2WK2640-1N4 | 15.3040 | |
9081 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629W2W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W2WK2640-1N4 | EAR99 | 8536.69.4040 | 200 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
B57-136-662IE02 | - | |
4309 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-662IE02 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-M15-221-GT6 | 5.0872 | |
7024 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M15 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M15-221-GT6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | - | ||
 |
628-21W1622-3NA | 18.6523 | |
8361 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-21W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-21W1622-3NA | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
630-2WK2650-2T4 | 8.3507 | |
8585 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2WK2650-2T4 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
B57-014-562I122 | - | |
7603 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-562I122 | EAR99 | 8536.69.4040 | 1 |
