D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
629-3WK3240-5N4 | 9.2546 |  |
5740 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3WK3240-5N4 | EAR99 | 8536.69.4040 | 100 | Plug, Female Sockets and Male Pins | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax | 3 (Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.370" (9.40mm) | |
 |
629-M09-240-WN6 | 4.4940 | |
2248 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-M09 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M09-240-WN6 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, Combo | - | Machined | 1 (DE, E) | 0.370" (9.40mm) | ||
 |
629-M25-340-GT5 | 11.2297 | |
7998 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M25-340-GT5 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 3 (DB, B) | 0.370" (9.40mm) | ||
 |
627-36W4224-4TC | 15.1722 | |
4267 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4224-4TC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - | |
 |
662-037-664-049 | 18.6138 | |
5391 | 0.00000000 | EDAC Inc. | 662 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 662-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-662-037-664-049 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | - | UL94 V-0 | Signal | 37, 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||
 |
627-M50-223-WN4 | 25.3648 | |
1888 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M50 | White | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M50-223-WN4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | - | |
 |
629-M37-340-WN1 | 12.1569 | |
1314 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-M37 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M37-340-WN1 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, Combo | - | Machined | 4 (DC, C) | 0.370" (9.40mm) | ||
|
628-050-320-548 | - | |
8230 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-050 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-050-320-548 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 3 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 5 (DD, D) | - | |
 |
630W3W3-140-1N4 | 14.8208 | |
9902 | 0.00000000 | EDAC Inc. | 630-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Mounting Brackets, Shielded | 630W3W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630W3W3-140-1N4 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 1 | Gold | 5.00µin (0.127µm) | 10A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | - | |
 |
629-21W1240-2NE | 9.7996 | |
1197 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-21W1240-2NE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | 0.370" (9.40mm) | |
 |
628-17W5224-2T6 | 12.1916 | |
1604 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W5224-2T6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |

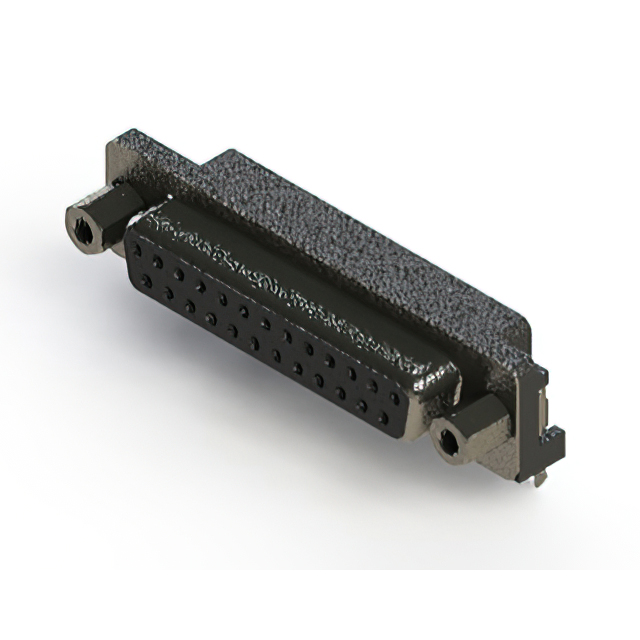

624-025-661-533 | 7.6010 | |
2721 | 0.00000000 | EDAC Inc. | 624 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Shielded | 624-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-624-025-661-533 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.197" (5.00mm) | ||
 |
634-M15-663-WN1 | 8.8610 | |
5659 | 0.00000000 | EDAC Inc. | 634-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 634-M15 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-M15-663-WN1 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
630-17W5240-7NE | 16.6074 | |
2388 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W5240-7NE | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (15 + 2 Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
|
628-050-010-058 | 4.6258 | |
9794 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-050 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-050-010-058 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | - | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 50 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 5 (DD, D) | - | |
 |
627-009-221-073 | 1.5963 | |
2946 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-009 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-009-221-073 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | - | |
 |
622-015-268-013 | 3.2414 | |
4129 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Filter, Mounting Brackets, Shielded | 622-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-015-268-013 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.318" (8.08mm) | ||
 |

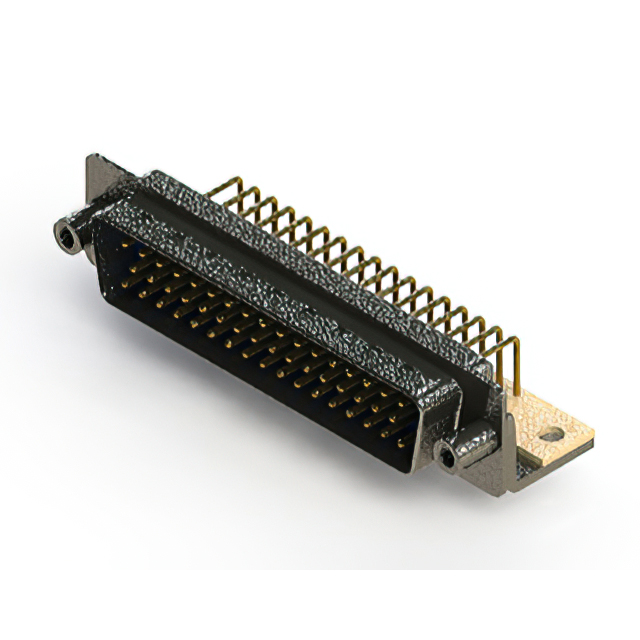

621-M50-360-LN6 | 21.0740 | |
4549 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 621-M50 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M50-360-LN6 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | 0.283" (7.20mm) | ||
 |
629W5W5-240-4N2 | 15.7141 | |
5600 | 0.00000000 | EDAC Inc. | 629-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Shielded | 629W5W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629W5W5-240-4N2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
629-17W5640-2N4 | 30.9949 | |
4482 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W5640-2N4 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | 0.370" (9.40mm) | |
 |
627-M37-322-GN1 | 14.4857 | |
8113 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M37 | Green | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M37-322-GN1 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | - | ||
|
627-025-621-056 | 4.2561 | |
2081 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-025-621-056 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | - | ||
 |
630-5W5-650-4T6 | 17.2528 | |
4506 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-5W5-650-4T6 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | |
 |
B57-136-266I702 | - | |
6565 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-266I702 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-M50-240-GN5 | 12.0015 | |
4258 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 629-M50 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M50-240-GN5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, Combo | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | ||
|
627-36W4624-5NE | 41.4432 | |
8766 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4624-5NE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 36 (32 + 4 Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - | |
 |
B57-014-662I403 | - | |
1774 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-662I403 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-015-240-032 | 3.0966 | |
2656 | 0.00000000 | EDAC Inc. | 630 | - | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.409" (10.40mm) | ||
 |
628-M09-322-WT2 | 8.9350 | |
8923 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-M09 | White | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M09-322-WT2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
B57-114-665IF02 | - | |
2838 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-114-665IF02 | EAR99 | 8536.69.4040 | 1 |
