D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
629-17W5240-5T3 | 11.5807 |  |
4977 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W5240-5T3 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (12 + 5 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | 0.370" (9.40mm) | |
 |
629-11W1250-4N5 | 8.3335 | |
2804 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-11W1250-4N5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
622-009-660-546 | 4.1234 | |
3772 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-009-660-546 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side, Female Screwlock (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
B57-024-266I802 | - | |
2137 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-266I802 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-M15-340-LN2 | 7.3805 | |
3134 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-340-LN2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |
627-015-620-262 | 2.2846 | |
8329 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Grounding Indents, Shielded | 627-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-620-262 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
621-037-368-040 | 8.2194 | |
2967 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets, Shielded | 621-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-037-368-040 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.318" (8.08mm) | ||
 |
629-M37-640-BT3 | 17.3880 | |
2091 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 629-M37 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M37-640-BT3 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 4 (DC, C) | 0.370" (9.40mm) | ||
 |
621-025-268-532 | 4.0530 | |
1625 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets, Shielded | 621-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-025-268-532 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
638-M15-330-BN5 | 6.0690 | |
2979 | 0.00000000 | EDAC Inc. | 638-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 638-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-M15-330-BN5 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 1 (DE, E) High Density | - | ||
 |
627-009-371-076 | 2.4750 | |
6158 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-009 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-009-371-076 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | - | |
 |
B57-024-665I223 | - | |
4172 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-665I223 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
633-M62-663-BN2 | 31.7520 | |
9634 | 0.00000000 | EDAC Inc. | 633-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 633-M62 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-M62-663-BN2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | 0.350" (8.89mm) | ||
 |
627-25W3622-3TA | 29.1875 | |
9456 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-25W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-25W3622-3TA | EAR99 | 8536.69.4040 | 200 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | |
 |
622-M50-260-GN1 | 11.9416 | |
9286 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Shielded | 622-M50 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M50-260-GN1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | 0.283" (7.20mm) | ||
 |
661-037-264-036 | 13.4664 | |
6036 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 661-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-037-264-036 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 37, 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||
 |
628-M25-321-BT5 | 11.0691 | |
1659 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M25 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M25-321-BT5 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
B57-014-265I503 | - | |
8053 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-265I503 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
627-M25-220-LN3 | 5.1450 | |
2809 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M25 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-220-LN3 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |

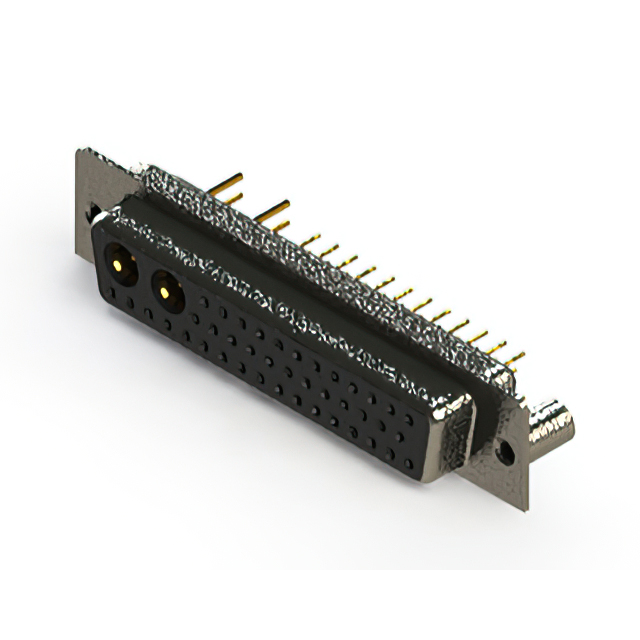

628-43W2624-5NB | 39.7399 | |
2290 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-43W2624-5NB | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 43 (41 + 2 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
|
627-037-620-068 | 4.6945 | |
4602 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 627-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-037-620-068 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |

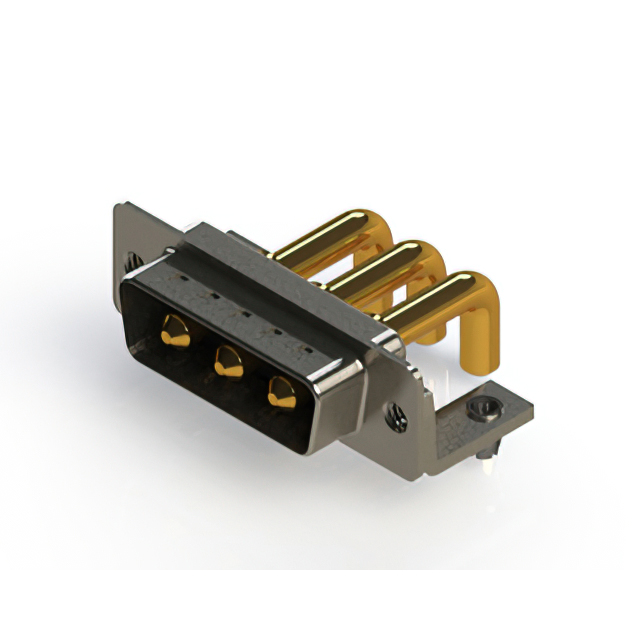

629-3W3-250-4T3 | 5.3866 | |
4547 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-3W3 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3W3-250-4T3 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3W3 | 0.520" (13.20mm) | |
 |
627-M50-620-LN2 | 26.3340 | |
4867 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M50 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M50-620-LN2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||
 |
627-5W5-624-1N4 | 18.1012 | |
8489 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount | Grounding Indents, Shielded | 627-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-5W5-624-1N4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 10A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
633-W15-662-012 | 15.2180 | |
3773 | 0.00000000 | EDAC Inc. | 633-W | Tray | Active | -25°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Shielded | 633-W15 | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | REACH Unaffected | 151-633-W15-662-012 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT) | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | - | ||
 |
638-015-231-051 | 2.2638 | |
8536 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 638-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-015-231-051 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | - | ||
 |
B57-036-660I223 | - | |
4228 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-660I223 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
|
627-025-220-067 | 1.6549 | |
8258 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-025-220-067 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | - | |
 |
B57-150-665I402 | - | |
9574 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-665I402 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
627-M09-222-LT1 | 2.7930 | |
6618 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M09 | Blue | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-222-LT1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - |
