Connectors, Interconnects(829794)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating)
ESD-128-T-24 Samtec Inc. ESD-128-T-24 -
RFQ
 ECAD 5193 0.00000000 Samtec Inc. ESD Bulk Active -55°C ~ 125°C - Through Hole - ESD-128 Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Elevated Socket 2 - Beryllium Copper UL94 V-0 Female Socket 0.100" (2.54mm) 56 0.100" (2.54mm) All Push-Pull 0.115" (2.92mm) 0.400" (10.16mm) Circular Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MTLW-102-22-S-S-430 Samtec Inc. MTLW-102-22-S-S-430 0.8800
RFQ
 ECAD 3606 0.00000000 Samtec Inc. Flex Stack, MTLW Bulk Active -55°C ~ 125°C - Through Hole - MTLW-102 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 5.2A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 2 - All Unshrouded Push-Pull 0.430" (10.92mm) 0.140" (3.56mm) 0.630" (16.00mm) 0.060" (1.52mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
SSQ-115-01-STL-D Samtec Inc. SSQ-115-01-STL-D -
RFQ
 ECAD 1689 0.00000000 Samtec Inc. * Bulk Active download ROHS3 Compliant 612-SSQ-115-01-STL-D EAR99 8536.69.4040 1
SQT-134-01-F-6 Samtec Inc. SQT-134-01-F-6 34.6900
RFQ
 ECAD 3597 0.00000000 Samtec Inc. SQT Tube Active -55°C ~ 125°C - Through Hole - SQT-134 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 8 Receptacle 6 5.1A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 204 0.079" (2.00mm) All Push-Pull 0.090" (2.29mm) 0.250" (6.35mm) Square Gold Flash Tin Liquid Crystal Polymer (LCP) Black - - -
FW-22-03-F-D-250-065-EP-A Samtec Inc. FW-22-03-F-D-250-065-EP-A 9.5129
RFQ
 ECAD 3461 0.00000000 Samtec Inc. Flex Stack, FW Tube Active Surface Mount FW-22-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 17 0.050" (1.27mm) 2 0.050" (1.27mm) 44 0.315" (8.000mm) 0.065" (1.651mm) 0.250" (6.350mm) - Gold 3.00µin (0.076µm)
TMMH-110-05-S-DV-TR Samtec Inc. TMMH-110-05-S-DV-TR -
RFQ
 ECAD 8406 0.00000000 Samtec Inc. TMMH Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount - TMMH-110 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header, Cuttable 2 - Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 20 0.079" (2.00mm) All Unshrouded Push-Pull 0.065" (1.65mm) - - 0.079" (2.00mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
FW-40-01-L-D-425-100 Samtec Inc. FW-40-01-L-D-425-100 -
RFQ
 ECAD 6192 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Through Hole FW-40-01 Black Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 80 0.570" (14.478mm) 0.100" (2.540mm) 0.425" (10.800mm) 0.045" (1.143mm) Gold 10.0µin (0.25µm)
MW-10-03-G-D-130-135 Samtec Inc. MW-10-03-G-D-130-135 8.0200
RFQ
 ECAD 7184 0.00000000 Samtec Inc. Flex Stack, MW Tube Active Surface Mount Black, Natural Solder download ROHS3 Compliant 612-MW-10-03-G-D-130-135 58 0.039" (1.00mm) 2 0.039" (1.00mm) 20 0.265" (6.731mm) 0.135" (3.429mm) 0.130" (3.302mm) - Gold 10.0µin (0.25µm)
ZSS-106-09-G-S-1315 Samtec Inc. ZSS-106-09-G-S-1315 4.1200
RFQ
 ECAD 4186 0.00000000 Samtec Inc. * Bulk Active download ROHS3 Compliant 612-ZSS-106-09-G-S-1315 EAR99 8536.69.4040 1
ESQT-120-03-M-Q-370 Samtec Inc. ESQT-120-03-M-Q-370 -
RFQ
 ECAD 5319 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-120 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 4 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 80 0.079" (2.00mm) All Push-Pull 0.088" (2.23mm) 0.370" (9.40mm) Square Gold 20.0µin (0.51µm) Tin Liquid Crystal Polymer (LCP) Black - - -

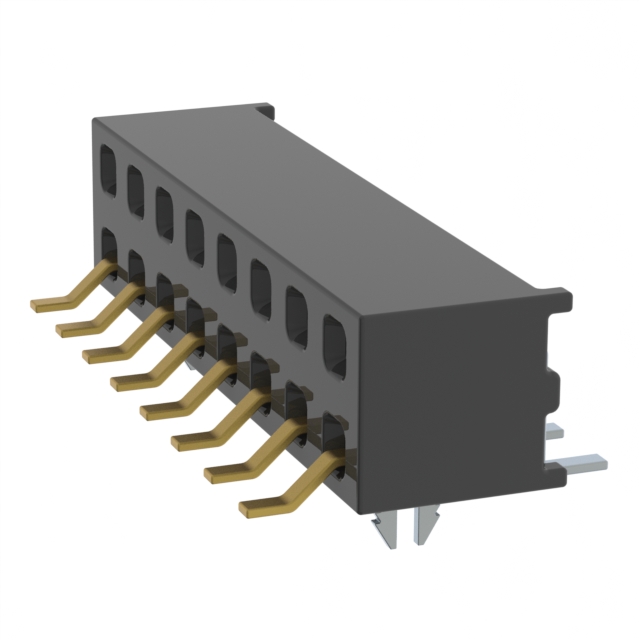

MMS-108-02-L-DH-LC Samtec Inc. MMS-108-02-L-DH-LC 8.1900
RFQ
 ECAD 4446 0.00000000 Samtec Inc. MMS Tube Active -55°C ~ 125°C - Surface Mount, Right Angle Board Lock MMS-108 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 35 Receptacle 2 3.9A per Contact Phosphor Bronze - Female Socket 0.079" (2.00mm) 16 0.079" (2.00mm) All Push-Pull - 0.157" (4.00mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HMTSW-114-12-S-D-200 Samtec Inc. HMTSW-114-12-S-D-200 -
RFQ
 ECAD 8673 0.00000000 Samtec Inc. Flex Stack, HMTSW Bulk Active -55°C ~ 125°C - Through Hole - HMTSW-114 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 28 0.100" (2.54mm) All Unshrouded Push-Pull 0.200" (5.08mm) 0.730" (18.54mm) 1.030" (26.16mm) 0.100" (2.54mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
FTR-140-56-G-D Samtec Inc. FTR-140-56-G-D -
RFQ
 ECAD 8956 0.00000000 Samtec Inc. FTR Tube Active -55°C ~ 125°C - Surface Mount - FTR-140 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.1A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 80 0.100" (2.54mm) All Unshrouded Push-Pull 0.405" (10.29mm) - - 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
CES-141-02-L-S Samtec Inc. CES-141-02-L-S -
RFQ
 ECAD 6984 0.00000000 Samtec Inc. CES Bulk Active -55°C ~ 125°C - Through Hole - CES-141 Solder - Board to Board download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 Receptacle 1 - Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 41 - All Push-Pull 0.223" (5.66mm) 0.200" (5.08mm) Square Gold 10.0µin (0.25µm) Tin Polybutylene Terephthalate (PBT) Black - - -
FW-03-05-G-D-248-275 Samtec Inc. FW-03-05-G-D-248-275 2.7800
RFQ
 ECAD 1902 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Surface Mount Black Solder download ROHS3 Compliant 612-FW-03-05-G-D-248-275 EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 6 0.523" (13.284mm) 0.275" (6.985mm) 0.248" (6.300mm) - Gold 10.0µin (0.25µm)
LCW-104-15-T-S-300 Samtec Inc. LCW-104-15-T-S-300 0.5200
RFQ
 ECAD 9979 0.00000000 Samtec Inc. LCW Bulk Active -55°C ~ 105°C - Through Hole - Solder - Board to Board or Cable download ROHS3 Compliant 612-LCW-104-15-T-S-300 EAR99 8536.69.4040 1 Header 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 4 - All Shrouded - 1 Wall Friction Lock 0.300" (7.62mm) 0.230" (5.84mm) 0.630" (16.00mm) 0.310" (7.87mm) Square Tin - Tin Polybutylene Terephthalate (PBT) Black - - -
SQT-115-03-FM-D Samtec Inc. SQT-115-03-FM-D 6.9600
RFQ
 ECAD 8299 0.00000000 Samtec Inc. SQT Tube Active -55°C ~ 125°C - Through Hole - SQT-115 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 18 Receptacle 2 5.1A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 30 0.079" (2.00mm) All Push-Pull 0.208" (5.28mm) 0.250" (6.35mm) Square Gold Flash Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-108-08-G-D-105-RA Samtec Inc. MTSW-108-08-G-D-105-RA 2.9800
RFQ
 ECAD 4266 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - MTSW-108 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 16 0.100" (2.54mm) All Unshrouded Push-Pull 0.105" (2.67mm) 0.090" (2.29mm) - 0.219" (5.56mm) Square Gold 10.0µin (0.25µm) Gold Polyester, Glass Filled Black - - 3.00µin (0.076µm)
HW-16-09-F-D-323-236 Samtec Inc. HW-16-09-F-D-323-236 -
RFQ
 ECAD 6427 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Through Hole HW-16-09 Black Solder download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 32 0.730" (18.542mm) 0.171" (4.343mm) 0.323" (8.204mm) 0.236" (5.994mm) Gold 3.00µin (0.076µm)
HW-16-12-L-S-475-SM Samtec Inc. HW-16-12-L-S-475-SM -
RFQ
 ECAD 6761 0.00000000 Samtec Inc. Flex Stack, HW Bulk Active Surface Mount HW-16-12 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 16 0.965" (24.511mm) 0.490" (12.446mm) 0.475" (12.065mm) - Gold 10.0µin (0.25µm)
HTSW-144-09-S-D Samtec Inc. HTSW-144-09-S-D -
RFQ
 ECAD 4477 0.00000000 Samtec Inc. HTSW Bulk Active -55°C ~ 125°C - Through Hole - HTSW-144 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header 2 Varies by Wire Gauge Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 88 0.100" (2.54mm) All Unshrouded Push-Pull 0.230" (5.84mm) 0.400" (10.16mm) 0.730" (18.54mm) 0.100" (2.54mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Natural - - -
HSS-106-G-1A Samtec Inc. HSS-106-G-1A 4.6000
RFQ
 ECAD 4958 0.00000000 Samtec Inc. * Bulk Active download ROHS3 Compliant 612-HSS-106-G-1A EAR99 8536.69.4040 1
MTLW-108-08-S-D-255 Samtec Inc. MTLW-108-08-S-D-255 -
RFQ
 ECAD 5706 0.00000000 Samtec Inc. Flex Stack, MTLW Bulk Active -55°C ~ 125°C - Through Hole - MTLW-108 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 5.2A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 16 0.100" (2.54mm) All Unshrouded Push-Pull 0.255" (6.48mm) 0.215" (5.46mm) 0.530" (13.46mm) 0.060" (1.52mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TMM-123-01-S-S-RA-020 Samtec Inc. TMM-123-01-S-S-RA-020 -
RFQ
 ECAD 9799 0.00000000 Samtec Inc. TMM Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - TMM-123 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 23 - 22 Unshrouded Push-Pull 0.126" (3.20mm) 0.120" (3.05mm) - 0.079" (2.00mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HLE-107-02-L-DV-A Samtec Inc. HLE-107-02-L-DV-A 4.4081
RFQ
 ECAD 8597 0.00000000 Samtec Inc. HLE Tube Active -55°C ~ 125°C - Surface Mount Board Guide HLE-107 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Receptacle 2 4.1A per Contact Beryllium Copper - Female Socket 0.100" (2.54mm) 14 0.100" (2.54mm) All Push-Pull - 0.144" (3.66mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black 400VAC - -
FW-25-03-FM-D-210-165 Samtec Inc. FW-25-03-FM-D-210-165 8.3417
RFQ
 ECAD 6530 0.00000000 Samtec Inc. Flex Stack, FW Tube Active Surface Mount FW-25-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 18 0.050" (1.27mm) 2 0.050" (1.27mm) 50 0.375" (9.525mm) 0.165" (4.191mm) 0.210" (5.334mm) - Gold 3.00µin (0.076µm)
FTSH-110-02-S-D-EL Samtec Inc. FTSH-110-02-S-D-EL -
RFQ
 ECAD 9697 0.00000000 Samtec Inc. FTSH Bulk Active -55°C ~ 125°C - Through Hole Board Lock, End Shrouds FTSH-110 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 20 0.050" (1.27mm) All Shrouded Push-Pull 0.075" (1.90mm) 0.090" (2.29mm) 0.265" (6.73mm) 0.099" (2.51mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
CLE-170-01-G-DV-A Samtec Inc. CLE-170-01-G-DV-A 26.8080
RFQ
 ECAD 5938 0.00000000 Samtec Inc. CLE Tube Active -55°C ~ 125°C - Surface Mount Board Guide CLE-170 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 10 Receptacle, Pass Through 2 2.7A per Contact Beryllium Copper UL94 V-0 Female Socket 0.031" (0.80mm) 140 0.047" (1.20mm) All Push-Pull - 0.130" (3.30mm) Square Gold 10.0µin (0.25µm) Gold Liquid Crystal Polymer (LCP) Black - - 10.0µin (0.25µm)
DW-03-11-F-S-590 Samtec Inc. DW-03-11-F-S-590 -
RFQ
 ECAD 5314 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-03-11 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 1 - 3 0.930" (23.622mm) 0.230" (5.842mm) 0.590" (14.986mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
CLH-150-F-D-PE Samtec Inc. CLH-150-F-D-PE -
RFQ
 ECAD 3099 0.00000000 Samtec Inc. CLH Tube Active -65°C ~ 125°C - Through Hole - CLH-150 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 Receptacle, Pass Through 2 - Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 100 0.100" (2.54mm) All Push-Pull 0.090" (2.29mm) 0.140" (3.56mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
