Connectors, Interconnects(829794)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Applications Mounting Type Features Base Product Number Color Termination Ingress Protection Style DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Connector Type Pitch Number of Rows Row Spacing Contact Finish Contact Finish Thickness Current Rating (Amps) Contact Material Material Flammability Rating Contact Type Pitch - Mating Number of Positions Row Spacing - Mating Number of Positions Loaded Shrouding Fastening Type Contact Length - Mating Contact Length - Post Overall Contact Length Insulation Height Contact Shape Contact Finish - Mating Contact Finish Thickness - Mating Contact Finish - Post Insulation Material Insulation Color Voltage Rating Mated Stacking Heights Contact Finish Thickness - Post Wire Gauge Cable Termination Length - Overall Pin Length - Post (Mating) Length - Stack Height Length - Tail Contact Finish - Post (Mating) Contact Finish Thickness - Post (Mating) Cable Pitch Board-Side Pitch
MTSW-126-23-L-D-200 Samtec Inc. MTSW-126-23-L-D-200 -
RFQ
 ECAD 5498 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-126 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 52 0.100" (2.54mm) All Unshrouded Push-Pull 0.200" (5.08mm) 0.145" (3.68mm) 0.445" (11.30mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Polyester, Glass Filled Black - - -
TSW-126-07-T-S-LL Samtec Inc. TSW-126-07-T-S-LL 2.4500
RFQ
 ECAD 8403 0.00000000 Samtec Inc. TSW Bulk Active -55°C ~ 105°C - Through Hole - TSW-126 Kinked Pin, Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 26 - All Unshrouded Push-Pull 0.230" (5.84mm) 0.100" (2.54mm) 0.430" (10.92mm) 0.100" (2.54mm) Square Tin - Tin Polybutylene Terephthalate (PBT) Black - - -
MMS-115-01-F-DH Samtec Inc. MMS-115-01-F-DH 9.0800
RFQ
 ECAD 4464 0.00000000 Samtec Inc. MMS Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - MMS-115 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 19 Receptacle 2 3.9A per Contact Phosphor Bronze - Female Socket 0.079" (2.00mm) 30 0.079" (2.00mm) All Push-Pull 0.120" (3.05mm) 0.157" (4.00mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-130-09-L-Q-200 Samtec Inc. MTSW-130-09-L-Q-200 -
RFQ
 ECAD 3812 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-130 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 60 0.200" (5.08mm) All Unshrouded Push-Pull 0.200" (5.08mm) 0.430" (10.92mm) 0.730" (18.54mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Polyester, Glass Filled Black - - -
MTMM-122-07-G-D-022 Samtec Inc. MTMM-122-07-G-D-022 -
RFQ
 ECAD 7333 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 125°C - Through Hole - MTMM-122 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 44 0.079" (2.00mm) All Unshrouded Push-Pull 0.022" (0.56mm) 0.456" (11.58mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
HPW-04-04-T-S-555-110-VS Samtec Inc. HPW-04-04-T-S-555-110-VS 2.3018
RFQ
 ECAD 8904 0.00000000 Samtec Inc. HPW Tube Active Surface Mount Natural Solder download ROHS3 Compliant 612-HPW-04-04-T-S-555-110-VS EAR99 8536.69.4040 28 0.200" (5.08mm) 1 - 4 - 0.110" (2.794mm) 0.555" (14.097mm) - Tin -
TST-124-02-L-D Samtec Inc. TST-124-02-L-D -
RFQ
 ECAD 7421 0.00000000 Samtec Inc. Flex Stack, TST Bulk Active -55°C ~ 125°C - Through Hole Keying Slot TST-124 Solder - Board to Cable/Wire - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 500 Header 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 48 0.100" (2.54mm) All Shrouded - 4 Wall Push-Pull 0.250" (6.35mm) 0.165" (4.19mm) 0.530" (13.46mm) 0.350" (8.89mm) Square Gold 10.0µin (0.25µm) Tin Polybutylene Terephthalate (PBT), Glass Filled Black - - -
DW-04-10-F-D-576 Samtec Inc. DW-04-10-F-D-576 -
RFQ
 ECAD 7753 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-04-10 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 8 0.830" (21.082mm) 0.144" (3.658mm) 0.576" (14.630mm) 0.110" (2.794mm) Gold 3.00µin (0.076µm)
FW-16-03-L-D-225-065 Samtec Inc. FW-16-03-L-D-225-065 -
RFQ
 ECAD 4033 0.00000000 Samtec Inc. Flex Stack, FW Bulk Active Surface Mount FW-16-03 Black Solder download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 0.050" (1.27mm) 2 0.050" (1.27mm) 32 0.290" (7.366mm) 0.065" (1.651mm) 0.225" (5.715mm) - Gold 10.0µin (0.25µm)
TMM-108-05-G-S Samtec Inc. TMM-108-05-G-S -
RFQ
 ECAD 7168 0.00000000 Samtec Inc. TMM Tube Active -55°C ~ 125°C - Through Hole - TMM-108 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 8 - All Unshrouded Push-Pull 0.065" (1.65mm) 0.090" (2.29mm) 0.214" (5.43mm) 0.059" (1.50mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
BCS-127-L-D-HE-016 Samtec Inc. BCS-127-L-D-HE-016 -
RFQ
 ECAD 5616 0.00000000 Samtec Inc. Tiger Claw™ BCS Tube Active -55°C ~ 125°C - Through Hole, Right Angle - BCS-127 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 Receptacle 2 4.6A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 54 0.100" (2.54mm) 53 Push-Pull 0.125" (3.18mm) 0.210" (5.33mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black 475VAC - -
MTMM-103-08-T-S-225 Samtec Inc. MTMM-103-08-T-S-225 0.6500
RFQ
 ECAD 6181 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 105°C - Through Hole - MTMM-103 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 3 - All Unshrouded Push-Pull 0.225" (5.72mm) 0.476" (12.09mm) 0.059" (1.50mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
SSW-109-22-G-Q Samtec Inc. SSW-109-22-G-Q -
RFQ
 ECAD 4668 0.00000000 Samtec Inc. SSW Bulk Active -55°C ~ 125°C - Through Hole - SSW-109 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Receptacle 3 4.7A per Contact Phosphor Bronze UL94 V-0 Forked 0.100" (2.54mm) 27 0.100" (2.54mm) 18 Push-Pull 0.194" (4.93mm) 0.335" (8.51mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
TMMH-130-04-G-DV-EL Samtec Inc. TMMH-130-04-G-DV-EL -
RFQ
 ECAD 9613 0.00000000 Samtec Inc. TMMH Bulk Active -55°C ~ 125°C - Surface Mount End Shrouds TMMH-130 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 2 - Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 60 0.079" (2.00mm) All Unshrouded Latch Lock 0.075" (1.90mm) - - 0.079" (2.00mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
LTMM-120-02-T-D-SM Samtec Inc. LTMM-120-02-T-D-SM 7.8400
RFQ
 ECAD 6849 0.00000000 Samtec Inc. Flex Stack, LTMM Tube Active -55°C ~ 105°C - Surface Mount Keying Slot LTMM-120 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 13 Header 2 - Phosphor Bronze - Male Pin 0.079" (2.00mm) 40 0.079" (2.00mm) All Shrouded - 4 Wall Push-Pull 0.120" (3.05mm) - - 0.190" (4.83mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MTMM-104-08-T-S-325 Samtec Inc. MTMM-104-08-T-S-325 0.7600
RFQ
 ECAD 1165 0.00000000 Samtec Inc. MTMM Bulk Active -55°C ~ 105°C - Through Hole - MTMM-104 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 1 3A Phosphor Bronze UL94 V-0 Male Pin 0.079" (2.00mm) 4 - All Unshrouded Push-Pull 0.325" (8.26mm) 0.476" (12.09mm) 0.059" (1.50mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MTLW-102-22-T-S-110 Samtec Inc. MTLW-102-22-T-S-110 -
RFQ
 ECAD 4458 0.00000000 Samtec Inc. Flex Stack, MTLW Bulk Active -55°C ~ 105°C - Through Hole - MTLW-102 Solder - Board to Board or Cable - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 5.2A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 2 - All Unshrouded Push-Pull 0.110" (2.79mm) 0.460" (11.68mm) 0.630" (16.00mm) 0.060" (1.52mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
BCS-121-L-S-TE-020 Samtec Inc. BCS-121-L-S-TE-020 -
RFQ
 ECAD 5134 0.00000000 Samtec Inc. Tiger Claw™ BCS Tube Active -55°C ~ 125°C - Through Hole - BCS-121 Solder - Board to Board download ROHS3 Compliant 1 (Unlimited) REACH Unaffected EAR99 8536.69.4040 1 Receptacle 1 4.6A per Contact Phosphor Bronze UL94 V-0 Female Socket 0.100" (2.54mm) 21 - 20 Push-Pull 0.122" (3.10mm) 0.290" (7.37mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP), Glass Filled Black 475VAC - -
DW-35-19-S-D-450 Samtec Inc. DW-35-19-S-D-450 -
RFQ
 ECAD 1721 0.00000000 Samtec Inc. Flex Stack, DW Bulk Active Through Hole DW-35-19 Black Solder download ROHS3 Compliant Not Applicable REACH Unaffected EAR99 8536.69.4040 1 0.100" (2.54mm) 2 0.100" (2.54mm) 70 1.330" (33.782mm) 0.770" (19.558mm) 0.450" (11.430mm) 0.110" (2.794mm) Gold 30.0µin (0.76µm)
FTSH-140-02-L-D-RA Samtec Inc. FTSH-140-02-L-D-RA 14.5300
RFQ
 ECAD 80 0.00000000 Samtec Inc. FTSH Tube Active -55°C ~ 125°C - Through Hole, Right Angle - FTSH-140 Solder - Board to Board or Cable download ROHS3 Compliant Not Applicable EAR99 8536.69.4040 11 Header, Cuttable 2 3.4A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 80 0.050" (1.27mm) All Unshrouded Push-Pull 0.075" (1.90mm) 0.090" (2.29mm) - 0.135" (3.43mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -

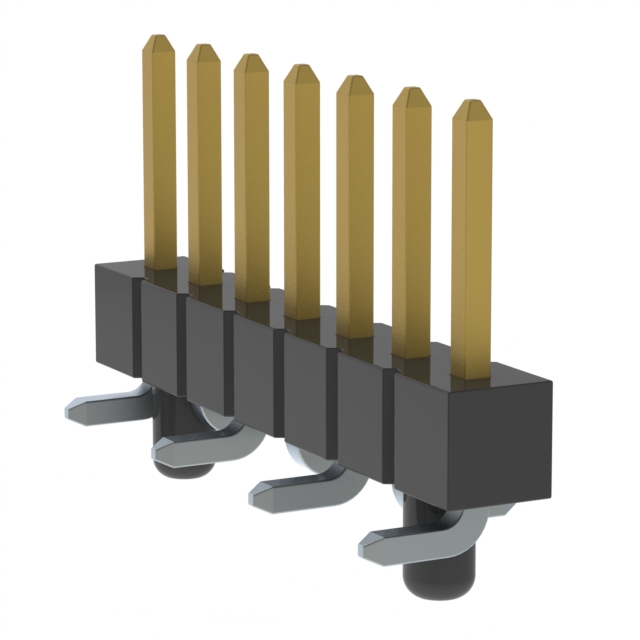

TSM-107-01-LM-SV-A Samtec Inc. TSM-107-01-LM-SV-A -
RFQ
 ECAD 4127 0.00000000 Samtec Inc. TSM Tube Active -55°C ~ 125°C - Surface Mount Board Guide TSM-107 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 1 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 7 - All Unshrouded Push-Pull 0.230" (5.84mm) - - 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
AW-20-03-G-D-122-080 Samtec Inc. AW-20-03-G-D-122-080 10.6239
RFQ
 ECAD 9319 0.00000000 Samtec Inc. Flex Stack, AW Tube Active Surface Mount Black, Natural Solder download ROHS3 Compliant 612-AW-20-03-G-D-122-080 36 0.031" (0.80mm) 2 0.047" (1.20mm) 40 - 0.080" (2.032mm) 0.122" (3.099mm) - Gold 10.0µin (0.25µm)
TSM-103-03-L-DH-P-TR Samtec Inc. TSM-103-03-L-DH-P-TR -
RFQ
 ECAD 5748 0.00000000 Samtec Inc. TSM Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount, Right Angle Pick and Place TSM-103 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header 2 - Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 6 0.100" (2.54mm) All Unshrouded Push-Pull 0.420" (10.67mm) - - 0.240" (6.10mm) Square Gold 10.0µin (0.25µm) Tin Liquid Crystal Polymer (LCP) Black - - -
HCMD-14-01 Samtec Inc. HCMD-14-01 7.4636
RFQ
 ECAD 3352 0.00000000 Samtec Inc. HCMD Tube Active Through Hole, Right Angle Feed Through, Polarizing Key Black download ROHS3 Compliant 612-HCMD-14-01 EAR99 8544.42.9090 14 Ribbon Cable 2 0.100" (2.54mm) - - 28 All 28 AWG IDC 0.050" (1.27mm) 0.100" (2.54mm)
FTR-126-52-T-S-TR Samtec Inc. FTR-126-52-T-S-TR -
RFQ
 ECAD 1976 0.00000000 Samtec Inc. FTR Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount - FTR-126 Solder - Board to Board - ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header 1 3.1A per Contact Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 26 - All Unshrouded Push-Pull 0.205" (5.21mm) - - 0.100" (2.54mm) Square Tin - Tin Liquid Crystal Polymer (LCP) Black - - -
MTSW-127-10-G-T-430 Samtec Inc. MTSW-127-10-G-T-430 -
RFQ
 ECAD 6969 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-127 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 3 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 81 0.100" (2.54mm) All Unshrouded Push-Pull 0.430" (10.92mm) 0.300" (7.62mm) 0.830" (21.08mm) 0.100" (2.54mm) Square Gold 10.0µin (0.25µm) Gold Polyester, Glass Filled Black - - 3.00µin (0.076µm)
TMM-142-01-FM-D-RA-008 Samtec Inc. TMM-142-01-FM-D-RA-008 -
RFQ
 ECAD 8924 0.00000000 Samtec Inc. TMM Bulk Active -55°C ~ 125°C - Through Hole, Right Angle - TMM-142 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header 2 3.2A per Contact Phosphor Bronze - Male Pin 0.079" (2.00mm) 84 0.079" (2.00mm) 83 Unshrouded Push-Pull 0.126" (3.20mm) 0.120" (3.05mm) - 0.155" (3.94mm) Square Gold 3.00µin (0.076µm) Tin Liquid Crystal Polymer (LCP) Black - - -
TFML-120-02-SM-D-LC-P-TR Samtec Inc. TFML-120-02-SM-D-LC-P-TR -
RFQ
 ECAD 8211 0.00000000 Samtec Inc. Tiger Eye™ TFML Tape & Reel (TR) Active -55°C ~ 125°C - Surface Mount Board Lock, Pick and Place TFML-120 Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 125 Header 2 - Phosphor Bronze UL94 V-0 Male Pin 0.050" (1.27mm) 40 0.050" (1.27mm) All Shrouded - 4 Wall Friction Lock 0.134" (3.39mm) - - 0.220" (5.60mm) Square Gold 30.0µin (0.76µm) Tin Liquid Crystal Polymer (LCP) Black - - -
ESQT-130-02-GF-Q-380 Samtec Inc. ESQT-130-02-GF-Q-380 -
RFQ
 ECAD 5497 0.00000000 Samtec Inc. ESQT Bulk Active -55°C ~ 125°C - Through Hole - ESQT-130 Solder - Board to Board or Cable - ROHS3 Compliant Not Applicable EAR99 8536.69.4040 1 Elevated Socket 4 4.5A per Contact Phosphor Bronze UL94 V-0 Forked 0.079" (2.00mm) 120 0.079" (2.00mm) All Push-Pull 0.470" (11.94mm) 0.380" (9.65mm) Square Gold 20.0µin (0.51µm) Gold Liquid Crystal Polymer (LCP) Black - - 3.00µin (0.076µm)
MTSW-136-24-S-T-200-LL Samtec Inc. MTSW-136-24-S-T-200-LL -
RFQ
 ECAD 8883 0.00000000 Samtec Inc. Flex Stack, MTSW Bulk Active -55°C ~ 125°C - Through Hole - MTSW-136 Kinked Pin, Solder - Board to Board or Cable download ROHS3 Compliant 1 (Unlimited) EAR99 8536.69.4040 1 Header, Cuttable 3 3A Phosphor Bronze UL94 V-0 Male Pin 0.100" (2.54mm) 108 0.100" (2.54mm) All Unshrouded Push-Pull 0.200" (5.08mm) 0.180" (4.57mm) 0.480" (12.19mm) 0.100" (2.54mm) Square Gold 30.0µin (0.76µm) Tin Polyester, Glass Filled Black - - -
